PK400AC

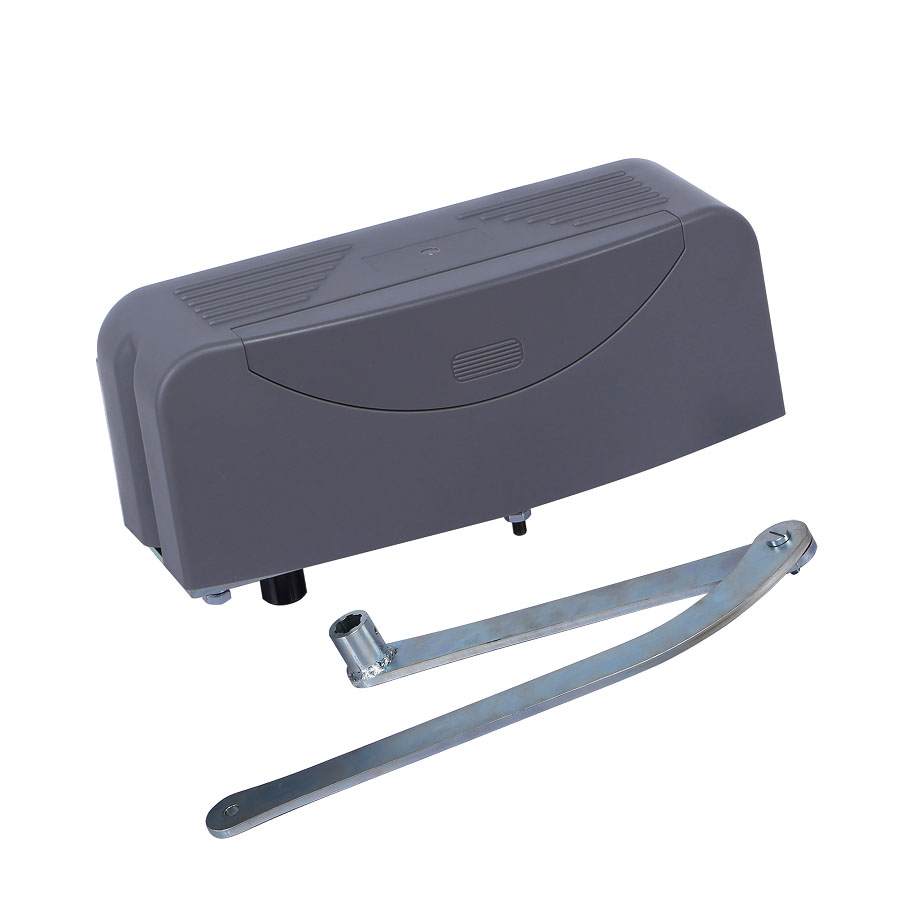

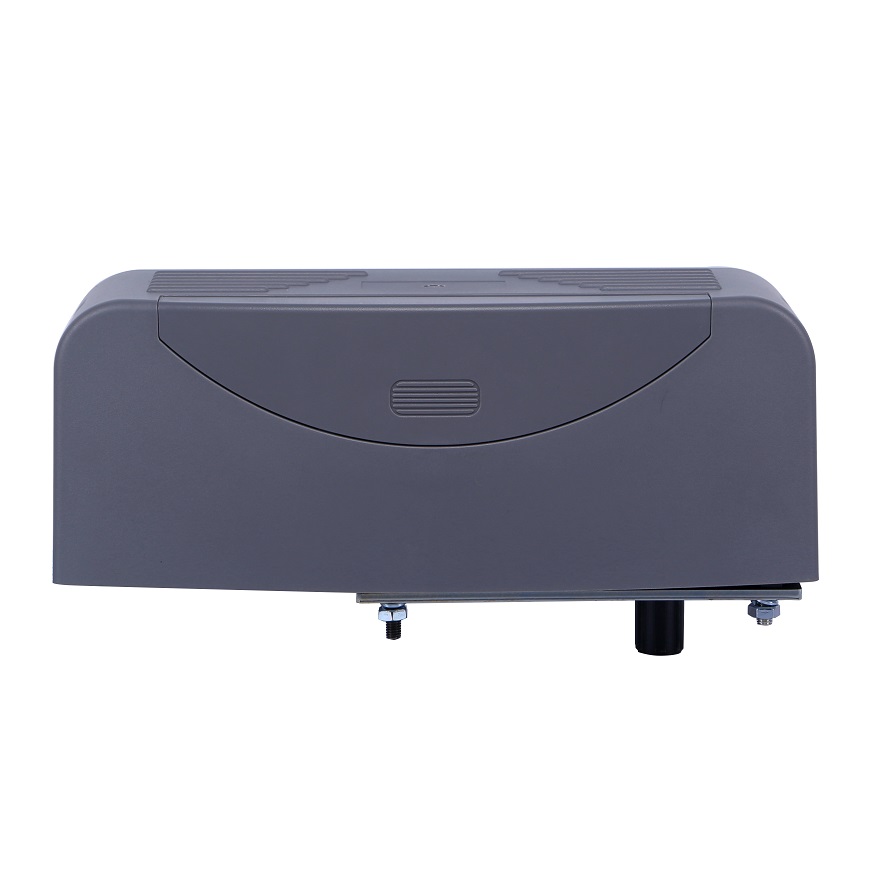

The PK400AC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3.0 meters.
Safe and reliable performance.
Adjustable moving speed.
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Integrated mechanical limit switches that permits to eliminate the ground stops.

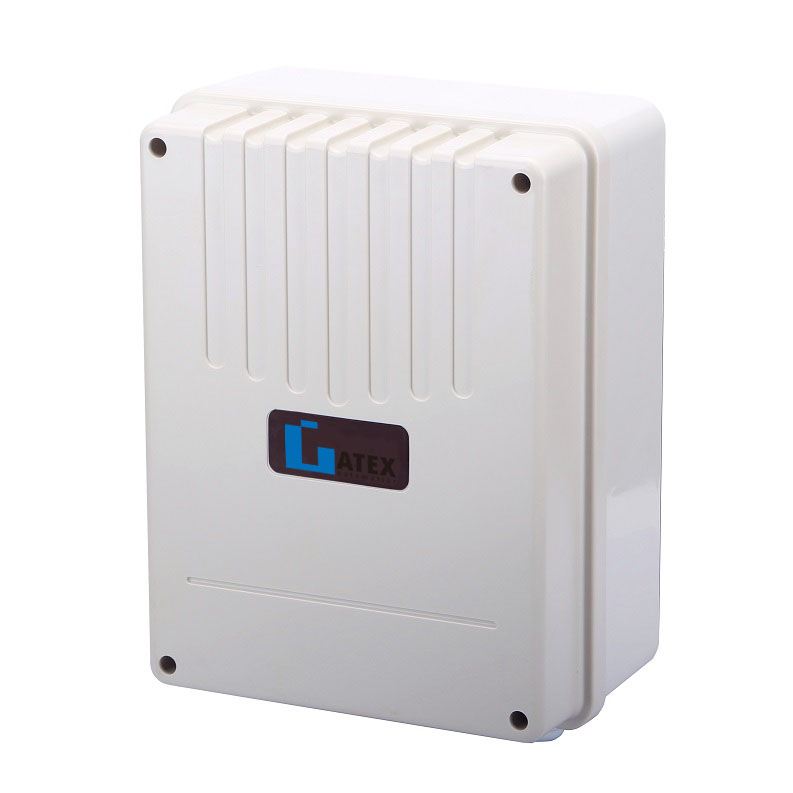

Available for installs 2 openers or 1 opener with a single control box.
Available with articulated arm or sliding arm.
Manual key release design for emergency purposes.
Technical Specifications
Model |
PK400AC |
Power supply |
220V/50Hz; 110V/60Hz |
Motor power |
200W |
Output torque |
350N·m |
Speed |
1.75rpm |
Driving method |
linkage |
Maximum gate weight |
400 Kg |
Max. single-leaf length |
3.0 meters |
Limit switch |
Mechanical limit switch |
Remote control range |
≥30m |
Frequency |
433.92mHz |
Remote control mode |
Single button |
Noise |
≤58dB |
Duty cycle |
S2, 15 minutes |
Extra remote control |
25 |
Environmental temperature |
-20°C ~ +70°C |
