PY800ACL

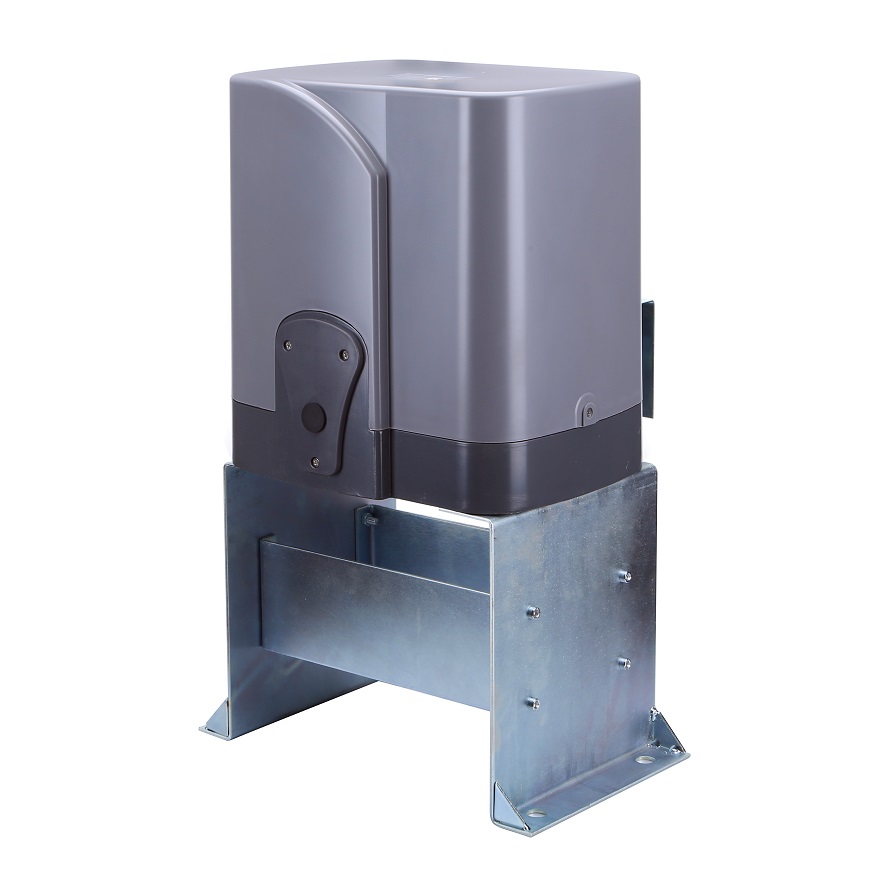

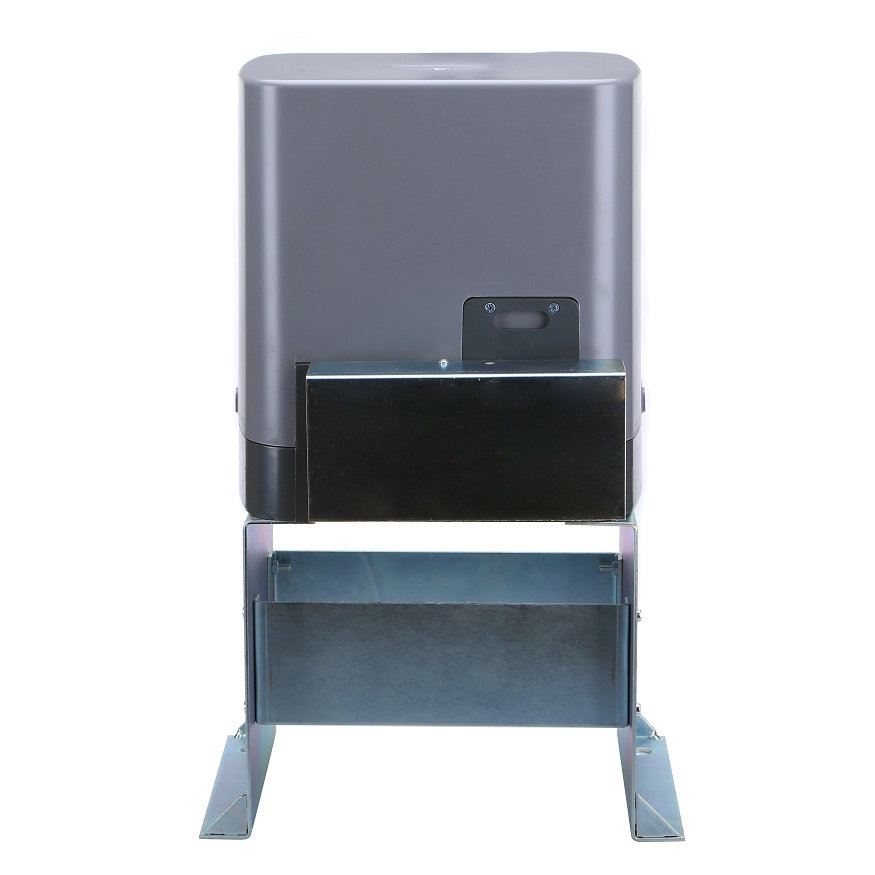

The SL600ACL/PY1400ACL gate opener designed for commercial and industrial use, weight up to 800/1400 Kg and operating distance up to 12 meters, Chain driven.
Compact structure, cost-effective.Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
Installation accessories
Technical Specifications
Model |
PY800AC |
PY1400AC |
Power supply |
220V, 50Hz; 110V, 60Hz |
Max. gate weight |
800Kg |
1400Kg |
Motor power |
360W |
500W |
Output torque |
22N·m |
32N·m |
Work duty |
S2, 15min |
Output shaft height |
56mm |
Limit switch |
Spring limit switch or magnetic limit switch |
Remote control range |
≥30m |
Remote control model |
Single button |
Extra remote control |
25 (2 included) |
Frequency |
433.92MHz |
Noise |
≤60dB |
Environmental temperature |
-20°C~+50°C |
Gate moving speed |
11m/min;13m/min |
