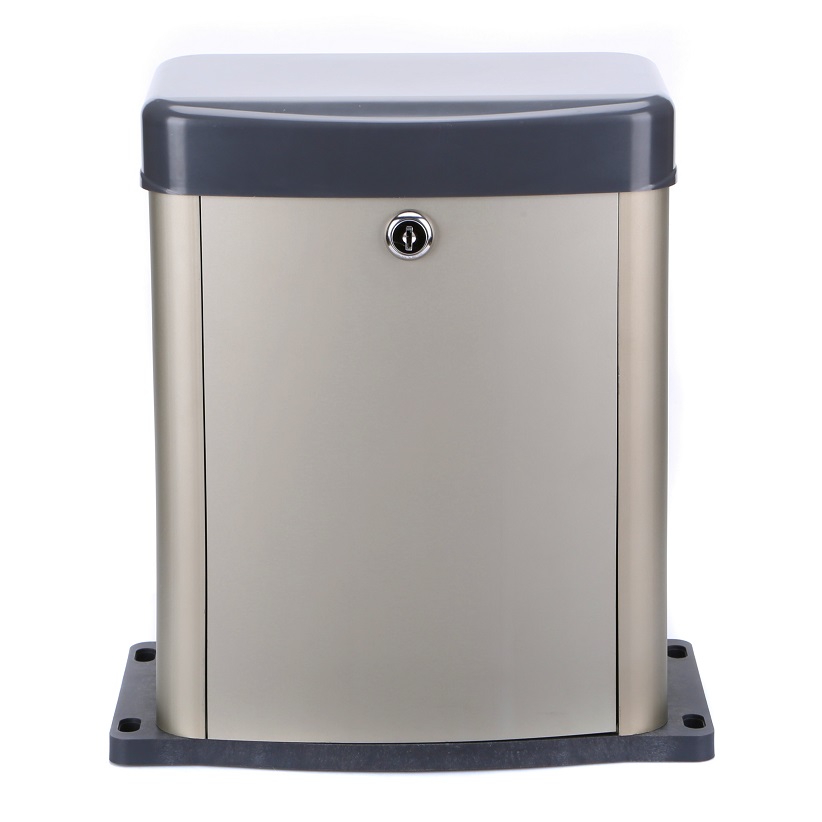

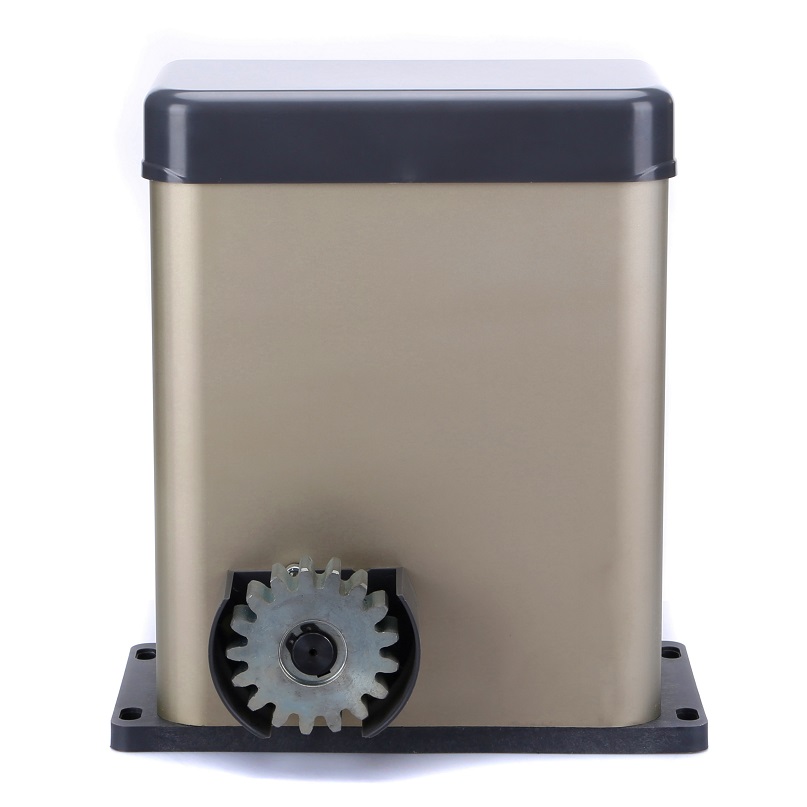

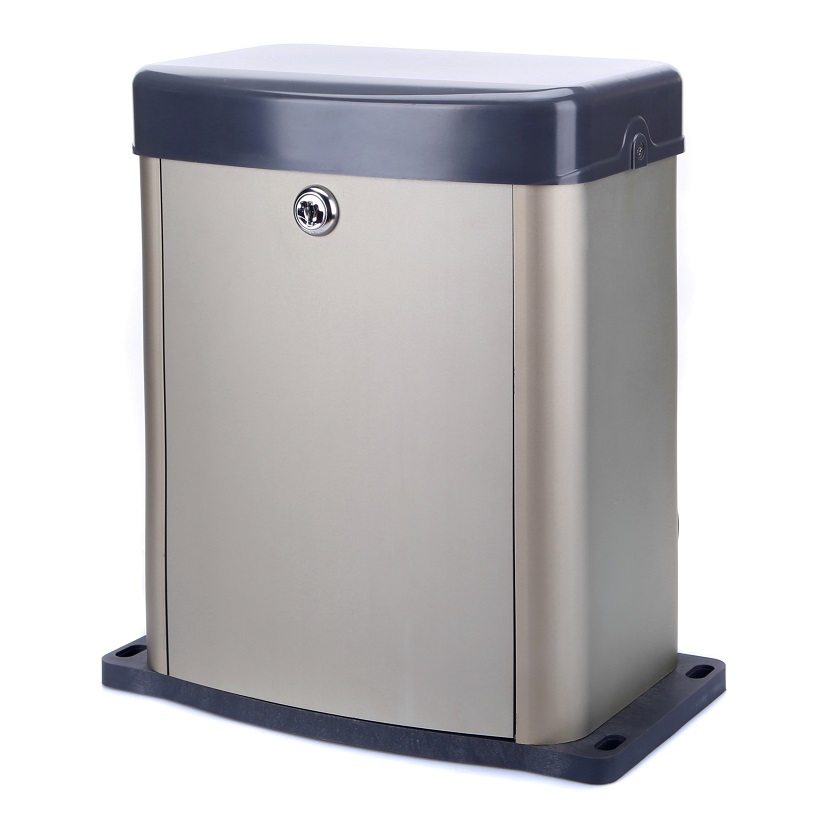

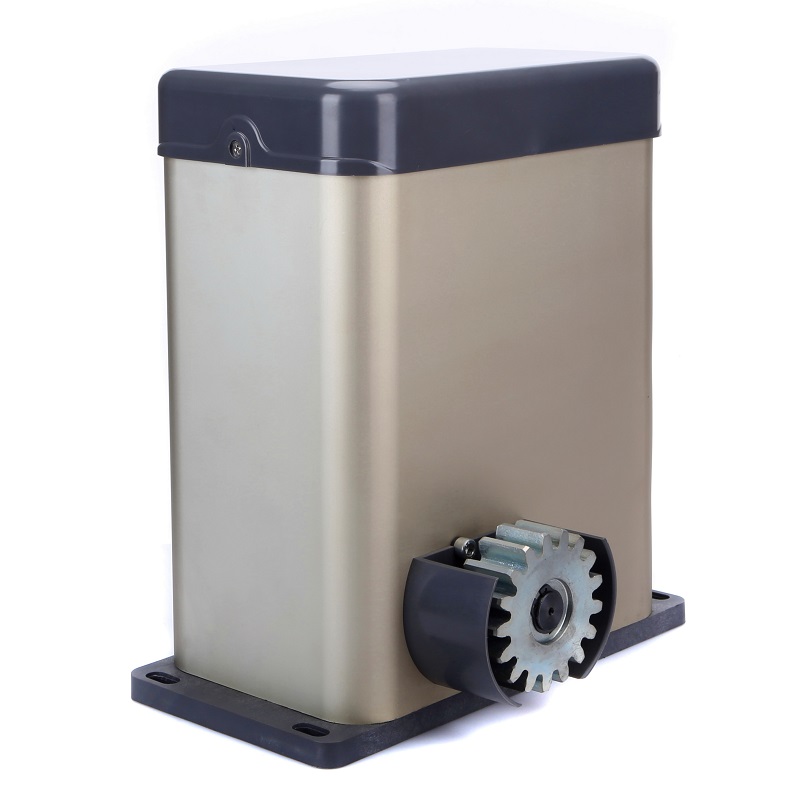

PY300DC
The PY300DC gate opener designed for residential use, weight up to 300 Kg and operating distance up to 8 meters.
Built-in control board and 24V/4.5Ah backup battery.Intelligent charging system supplied.
MCU is supplied to control the gate opener.
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Electronic limit switch and soft start & slow stop function.
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
Solar System compatible
Technical Specifications
Model |
PY300DC |
Power supply |
240V/50Hz; 110V/60Hz |
Maximum gate weight |
300Kg |
Motor power |
24VDC 100W |
Output torque |
Max. 8N·m |
Limit switch |
Electronic |
Gate moving speed |
13m/min |
Remote control range |
≥30meters |
Remote control mode |
Single button |
Extra remote control |
25 (2 included) |
Frequency |
433.92MHZ |
Work duty |
S2 30min |
Output shaft height |
46 mm |
Noise |
≤60 dB |
Working temperature |
-20ºC ~ +50ºC |
Backup battery |
24V 4.5 Ah |
