HSD750 - HSD1500S

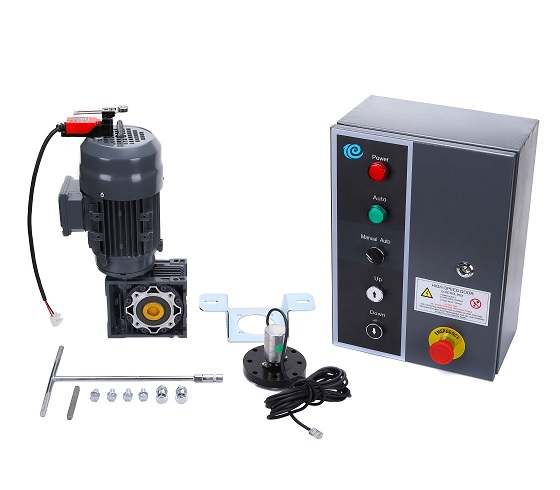

GATEX provide HSD series motor and control systems for interior and exterior high speed doors.
Frequency conversion motor by German technology.
Frequency control unit, adjustable speed, max. to 2.0 m/sec.
Strong output torque, high efficiency and low power consumption.
The tin bronze worm gear box, no wear, lower noise.
Advanced brake systems, heat resistance grade F.
Action time fast, high frequency of use.
With high stability and reliability.
Technical Specifications
|
Model |
HSD750 |
HSD750S |
HSD1500 |
HSD1500S |
|
Motor protection class |
IP54 |
IP54 |
IP54 |
IP54 |
|
Work duty |
S3,25% |
S3,25% |
S3,25% |
S3,25% |
|
Controller protection class |
IP65 |
IP65 |
IP65 |
IP65 |
|
Power supply |
220V,50Hz |
380V,50Hz |
220V,50Hz |
380V,50Hz |
|
Motor power |
750W |
750W |
1500W |
1500W |
|
Rated speed |
2800rpm |
2800rpm |
2800rpm |
2800rpm |
|
Rated current |
4.2A |
2.6A |
6A |
3.7A |
|
Standard reduction ratio |
20:1 |
20:1 |
20:1 |
20:1 |
|
Max. door moving speed |
2m/s |
2m/s |
2m/s |
2m/s |
|
Max. door surface |
15m2 |
30m2 |
25m2 |
50m2 |
|
Frequency converter |
220V, 1.5KW |
380V, 1.5KW |
220V, 2.2KW |
380V, 2.2KW |
|
Control voltage |
DC24V |
DC24V |
DC24V |
DC24V |
|
Adjustable frequency |
0-100Hz |
0-100Hz |
0-100Hz |
0-100Hz |
|
Absolute encoder |
64 cycles |
64 cycles |
64 cycles |
64 cycles |
|
Release method |
Hand crank |
Hand crank |
Hand crank |
Hand crank |
|
Environmental temperature |
20℃―+50℃ |
20℃―+50℃ |
20℃―+50℃ |
20℃―+50℃ |
|

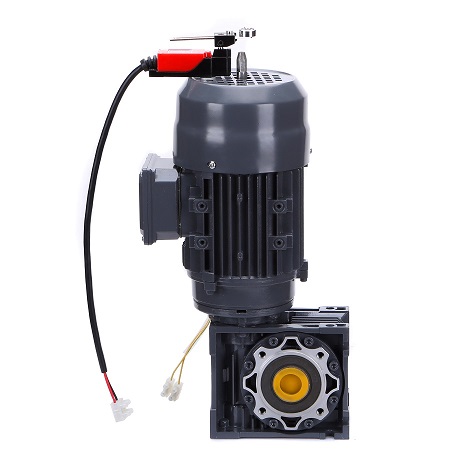

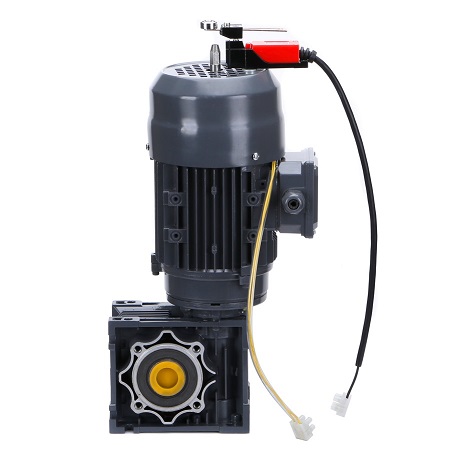

Motor size |
220X140X420 mm |
240X160X470 mm |
|
Motor weight |
11.5Kg |
15Kg |
|

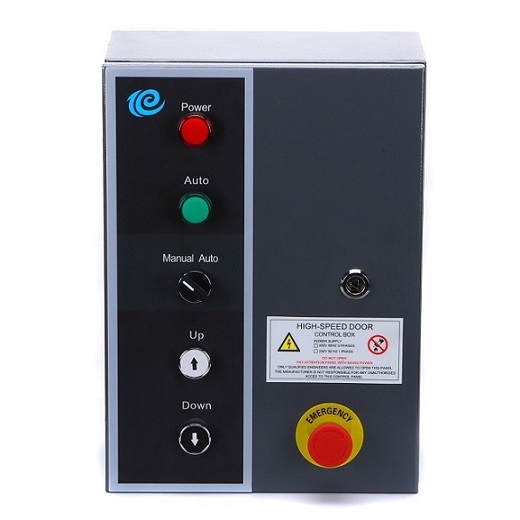

Control box size |
390X280X180 mm |
390X280X180 mm |
|
Control box weight |
9.25Kg |
9.25kg |
