DKC500AC DKC800AC

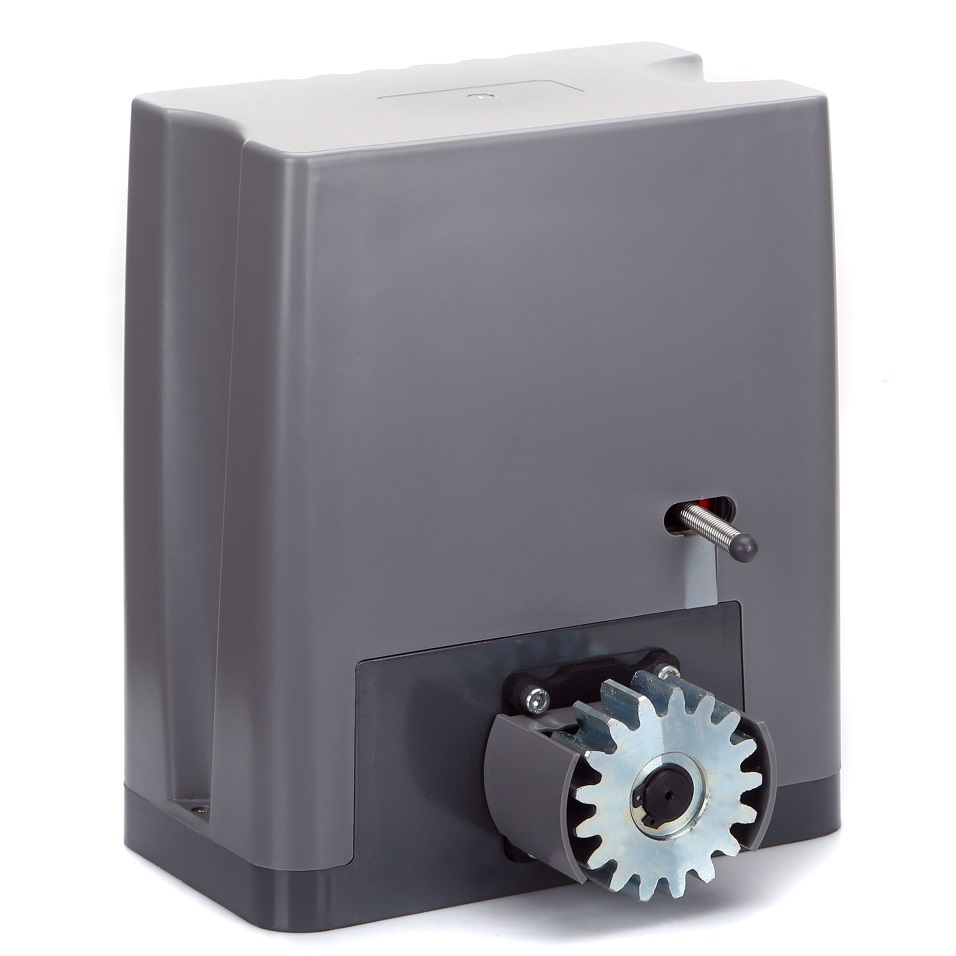

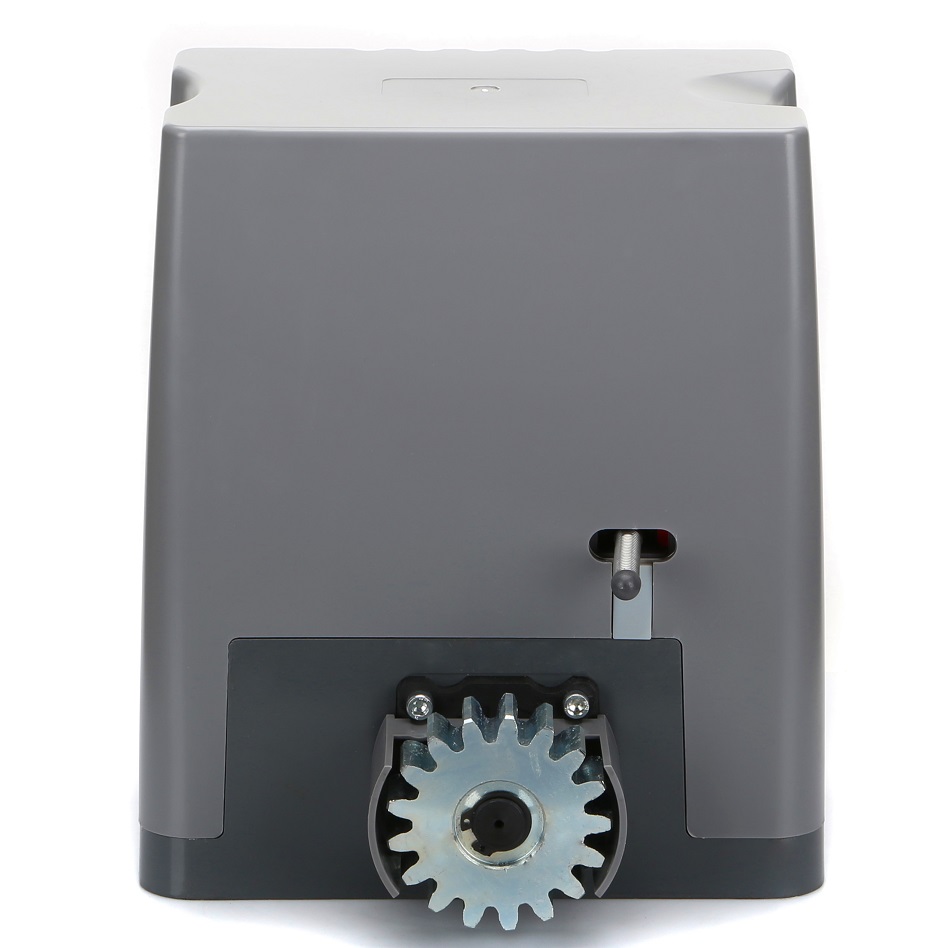

The DKC500AC/800AC gate opener designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.
Compact structure, novel appearance, easy installation, cost-effective.Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch

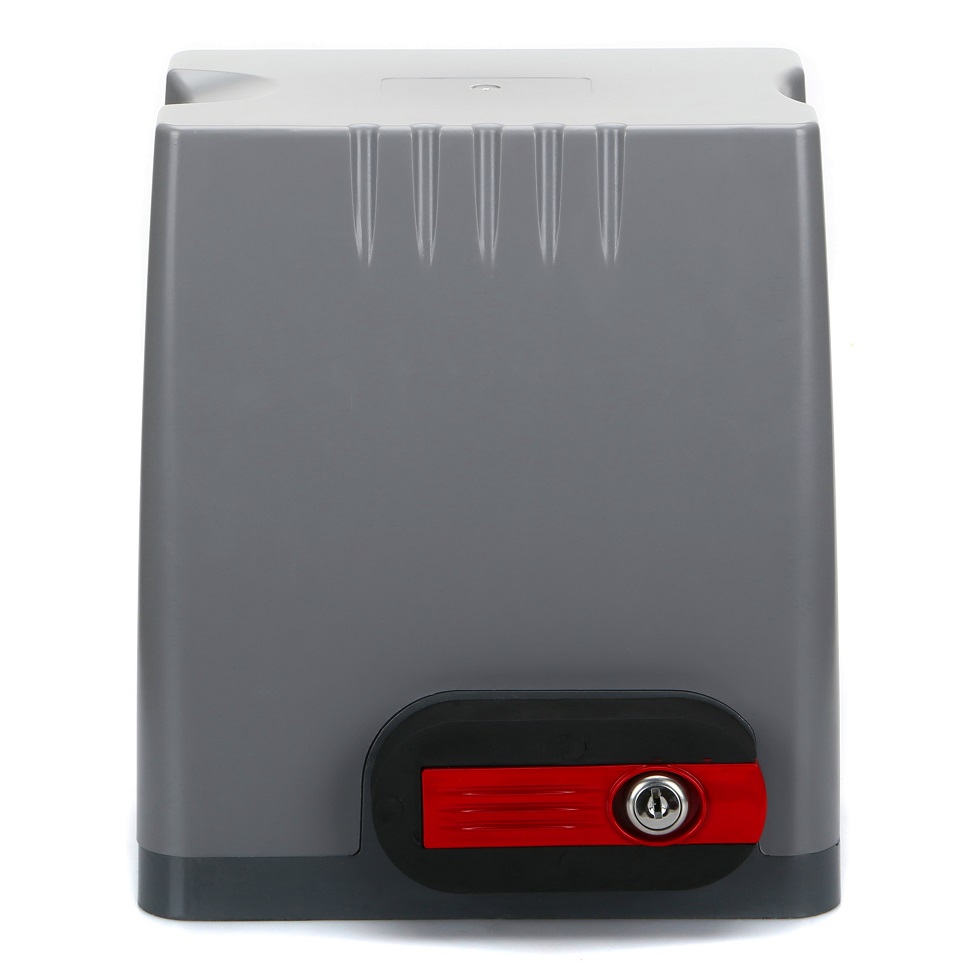

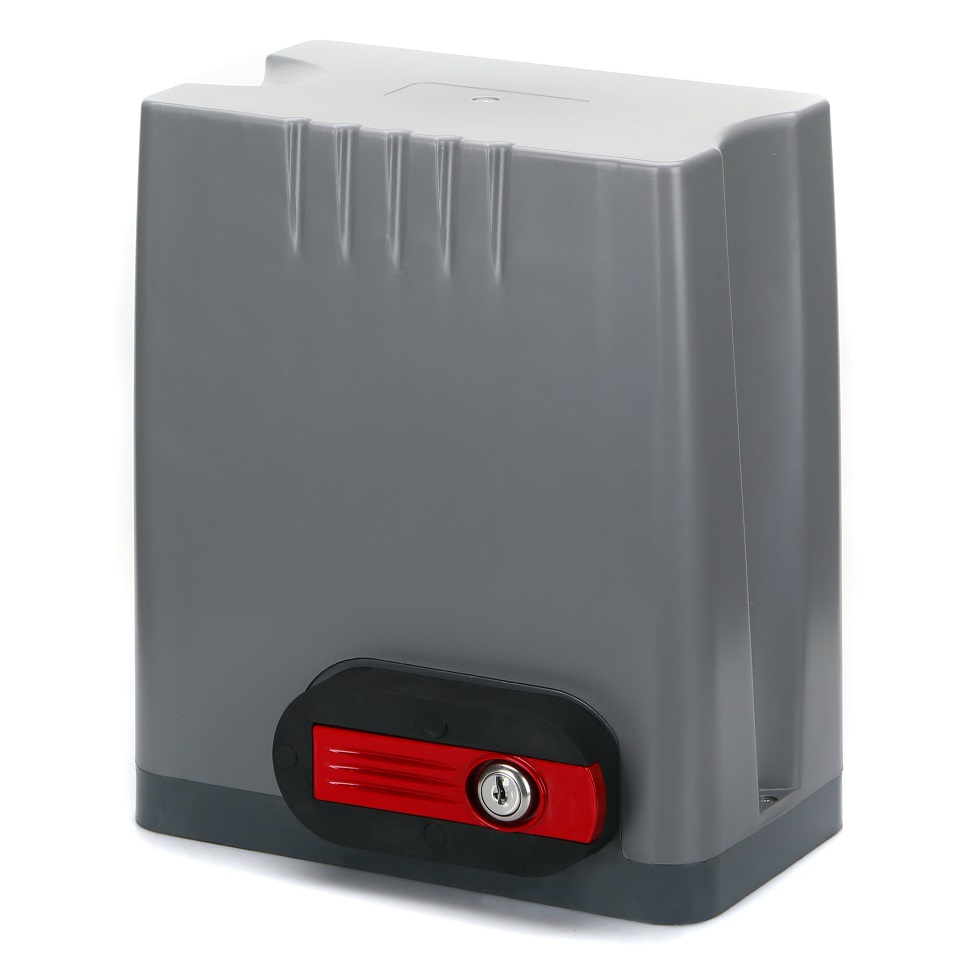

Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
Technical Specifications
Model |
DKC500AC |
DKC800AC |
Power supply |
220V/50Hz; 110V/60Hz |
220V/50Hz; 110V/60Hz |
Remote control range |
≥30m |
Remote control model |
Single button |
Max. gate weight |
500Kg |
800Kg |
Motor power |
200W |
300W |
Output torque |
14N·m |
18N·m |
Work duty |
S2, 15 min |
Limit switch |
Spring limit switch or magnetic limit switch |
Frequency |
433.92MHz |
Output shaft height |
46Mm |
Noise |
≤58dB |
Extra remote control |
25 (2 included) |
Environmental temperature |
-20°C~+50°C |
Gate moving speed |
11m/min |
13m/min |
