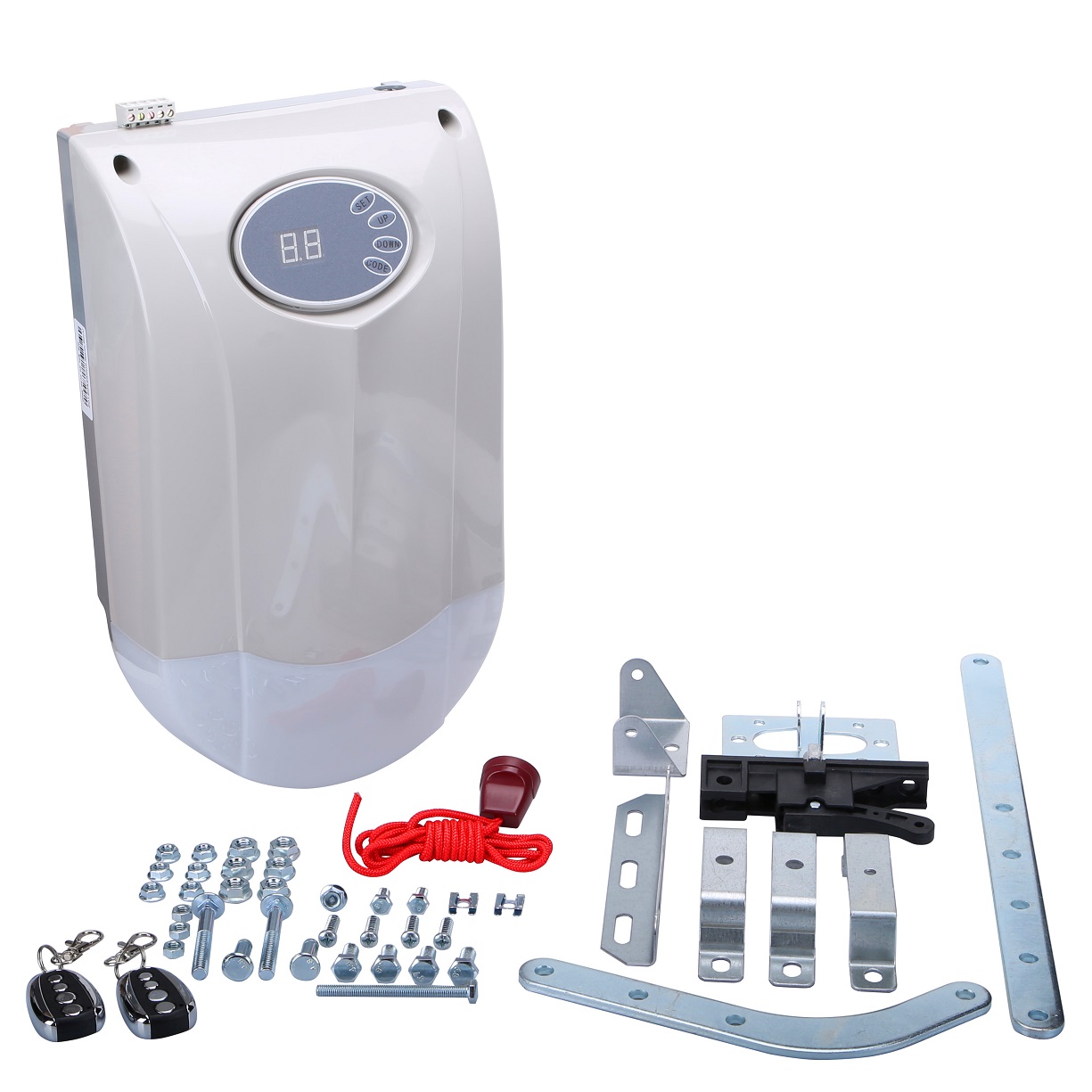

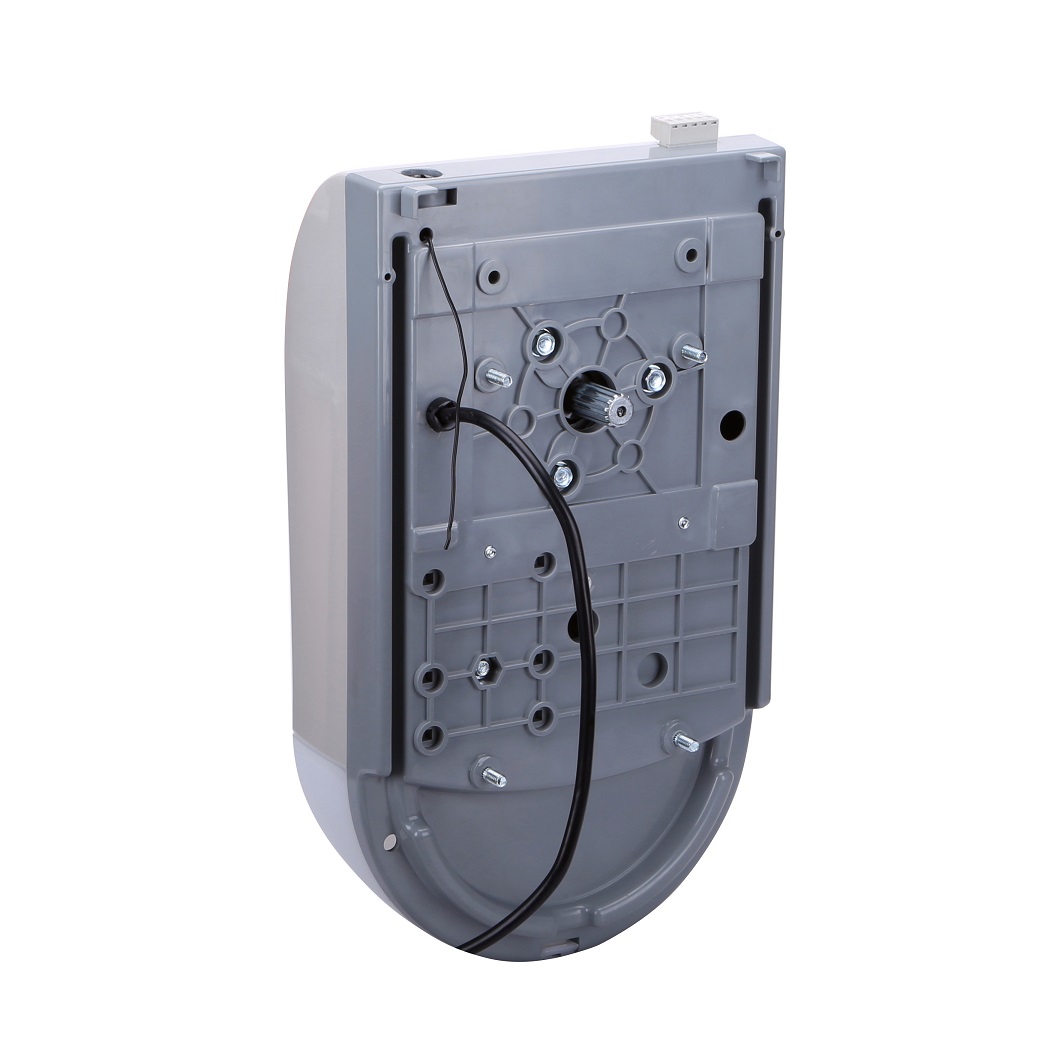

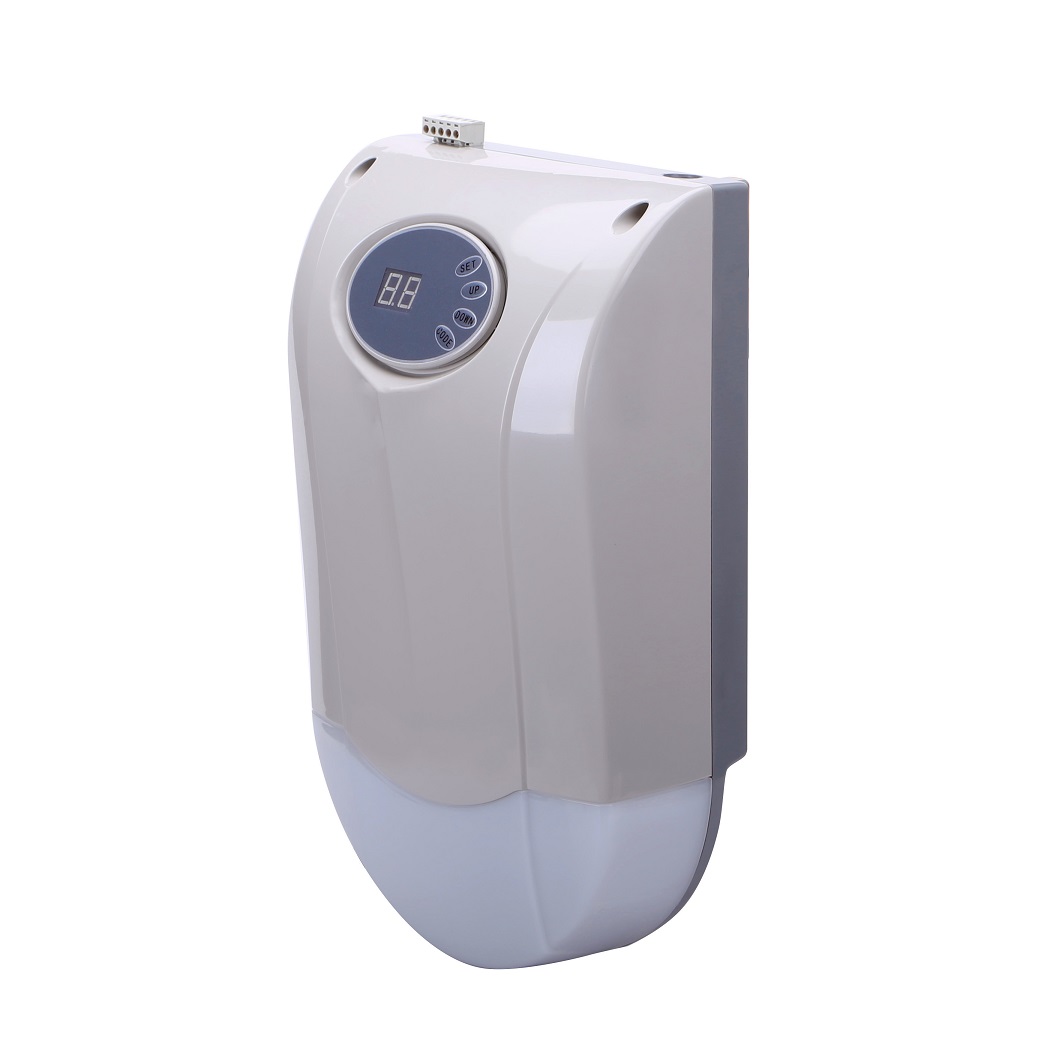

CK600 - CK1500
The CK series door opener is designed for residential up and over garage door use, up to 30 sq.m.
Exquisite appearance, remarkable performance and easy installation.
DC24V motor, the affordable solution for sectional garage door.
Built in control unit with 433.92 MHz receiver
Built in LED courtesy light
Setting buttons on the opener cover, convenient for programming.
C model rail (optional for metal or aluminum) length 3300mm for opening up to 2400 mm, include installation chain accessories and guide systems.
Available for pre-assembled tracks, 0.75m/pc, 1.1m/pc, total length 3 m or 3.3 m.
Soft start and slow stop function
Technical Specifications
Model |
CK600 |
CK800 |
CK1000 |
CK1200 |
CK1500 |
Power supply |
220V/110V |
Motor |
DC 24V |
Output torque |
600N |
800 N |
1000 N |
1200N |
1500N |
Door area |
9 Sq.m. |
12 Sq.m. |
16 Sq.m. |
20 Sq.m. |
25 Sq.m. |
Door moving speed |
12 cm/sec |
Remote control range |
≥30 m |
Extra remote control |
25 |
Frequency |
433.92mHz) |
Noise |
≤56 dB |
Working temperature |
-20°C~+70°C |
Relative humidity |
≤90% |
Transmitter power |
27A 12V Battery |
Courtesy light time |
3minutes |
