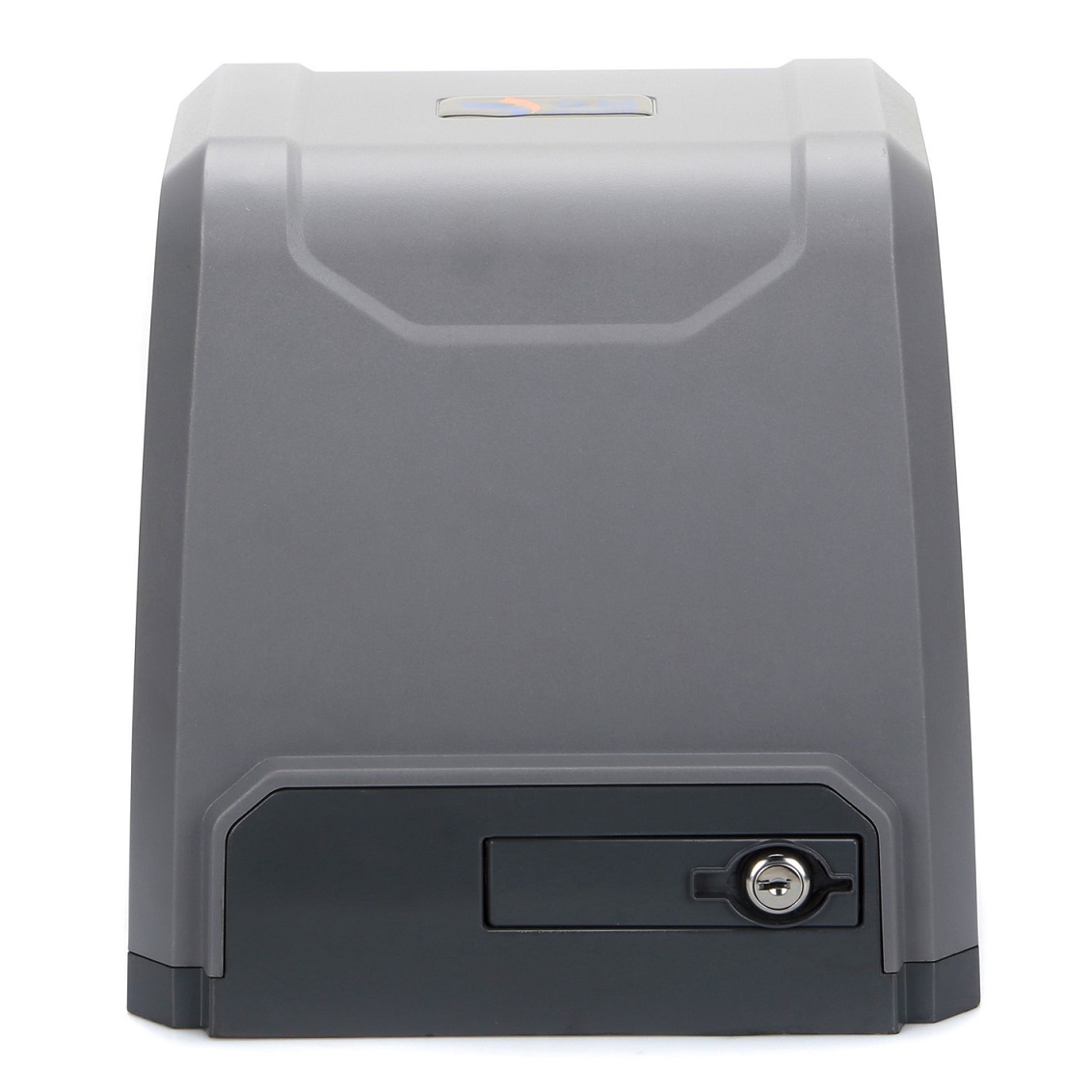

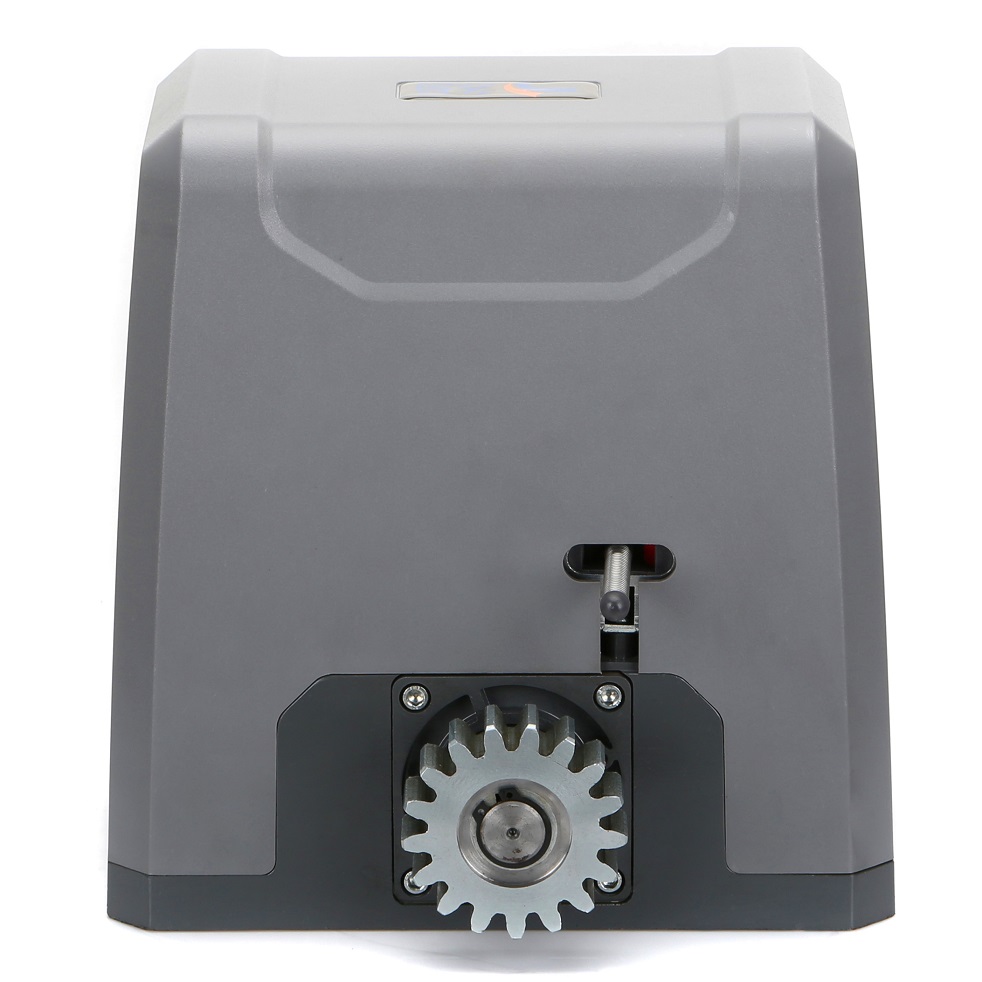

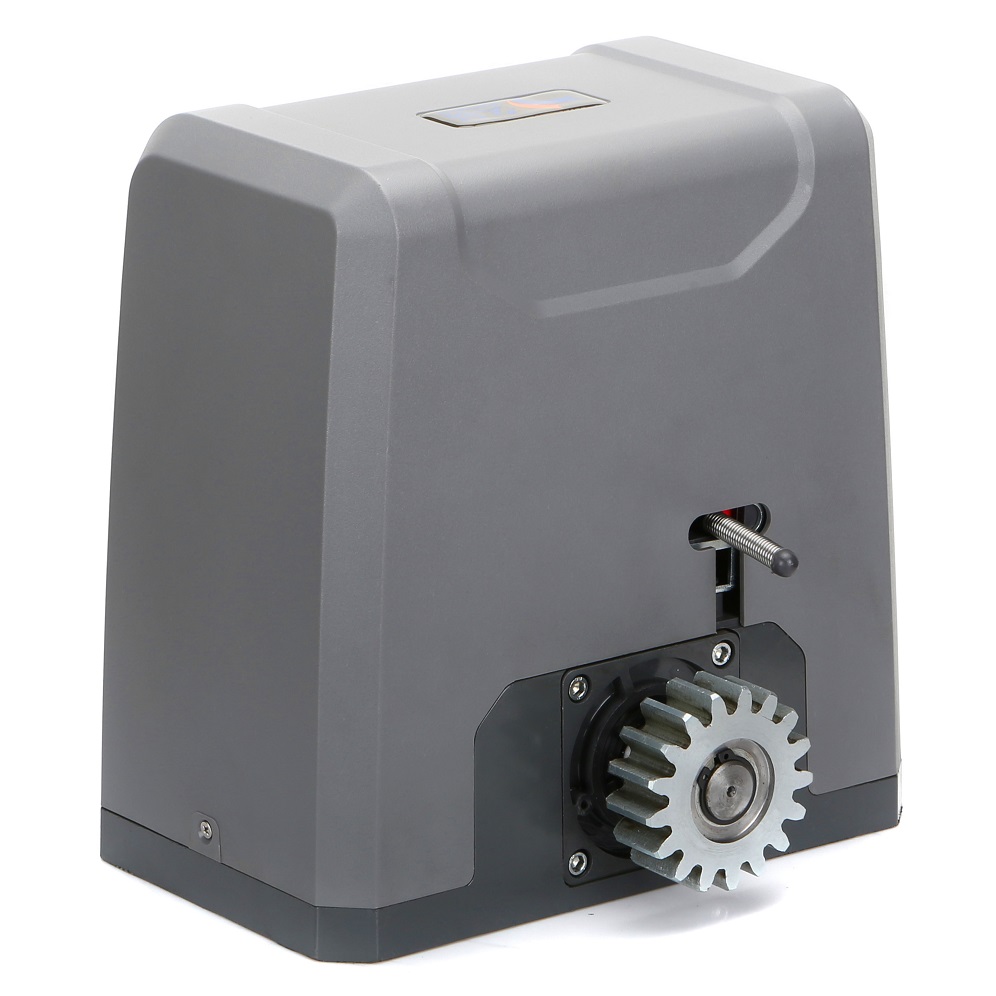

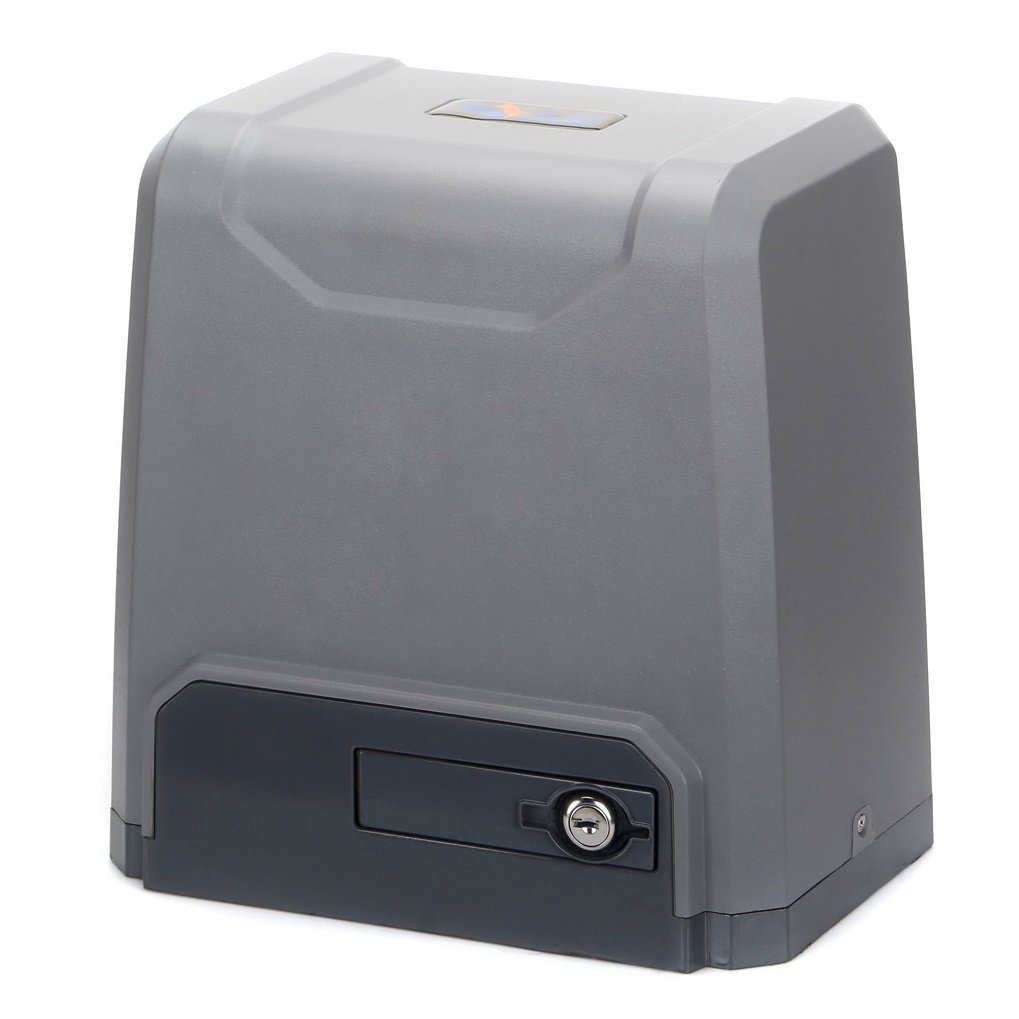

SL1000AC
The SL1000AC/SL1500AC gate opener designed for commercial and industrial use, weight up to 1000/1500 Kg and operating distance up to 12 meters.
Run smoothly, unique appearance and powerful.
Built in control board
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Optional for spring limit switch and magnetic limit switch
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing. (Smart version)
Technical Specifications
Model |
SL1000AC |
SL1500AC |
Power supply |
220V/50Hz; 110V/60Hz |
220V/50Hz; 110V/60Hz |
Remote control range |
≥30m |
Remote control model |
Single button |
Max. gate weight |
1000Kg |
1500Kg |
Motor power |
400W |
550W |
Output torque |
22N·m |
32N·m |
Work duty |
S2, 15min |
Limit switch |
Spring limit switch or magnetic limit switch |
Frequency |
433.92MHz |
Output shaft height |
50mm |
Noise |
≤58dB |
Extra remote control |
25 (2 included) |
Environmental temperature |
-20°C~+50°C |
Gate moving speed |
13m/min |
13m/min |
