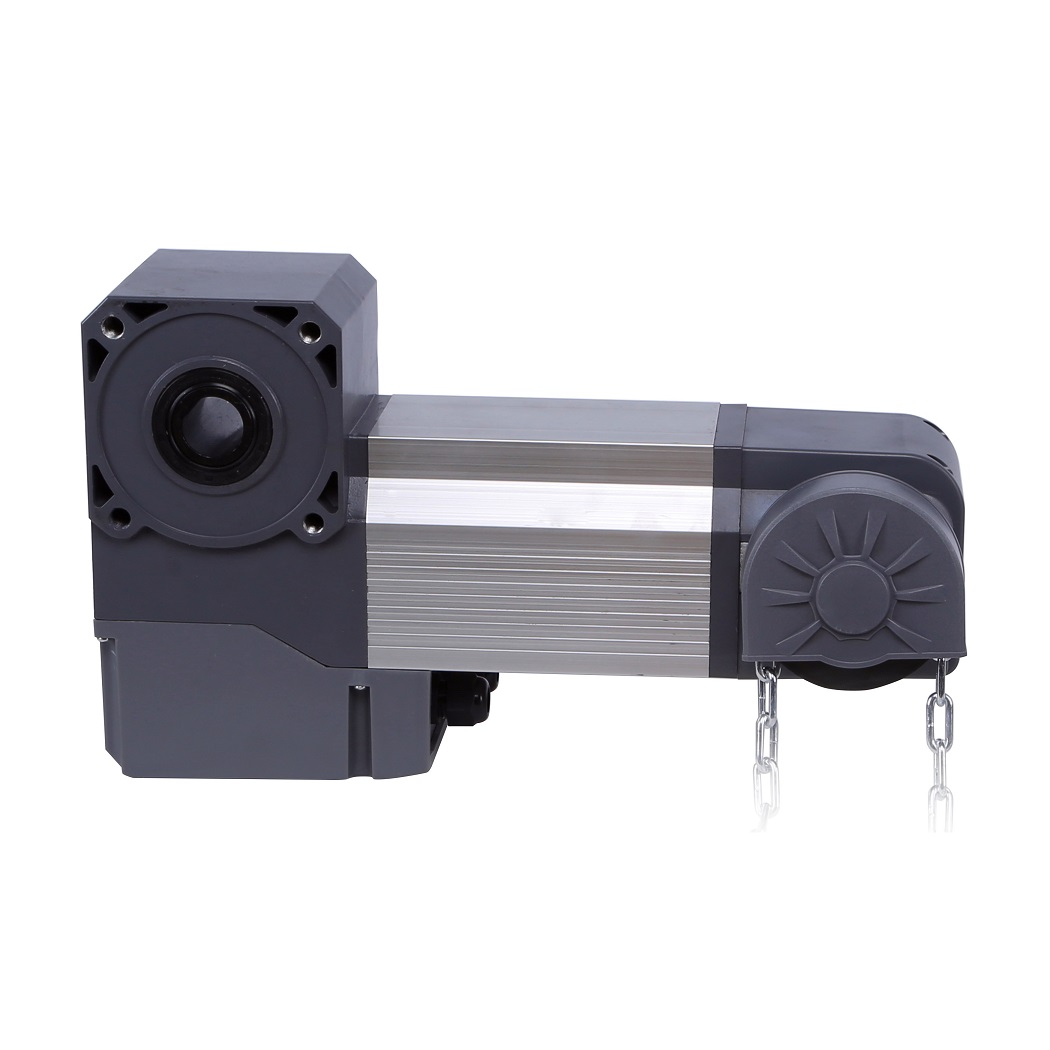

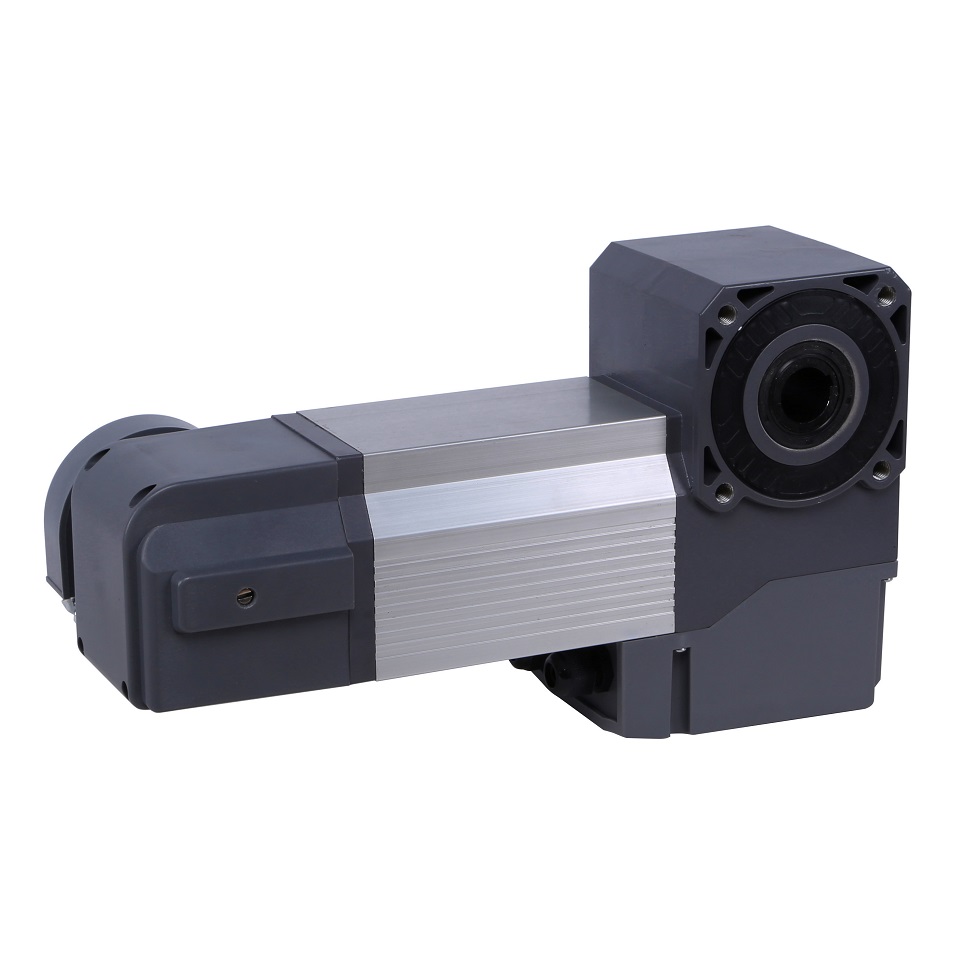

GY40 - GYS150
Oil immersed gear, durable aluminum alloy casing. Optional for built in control board or separately control unit, integrated receiver. Keypad / single button interface. Alarm lamp, Photo beam safety beam interface.
Self-locking structure, mechanical limit switch.
Standard output shaft aperture dia.25.40 mm, using metal adapter can transfer to dia.40.00 mm.

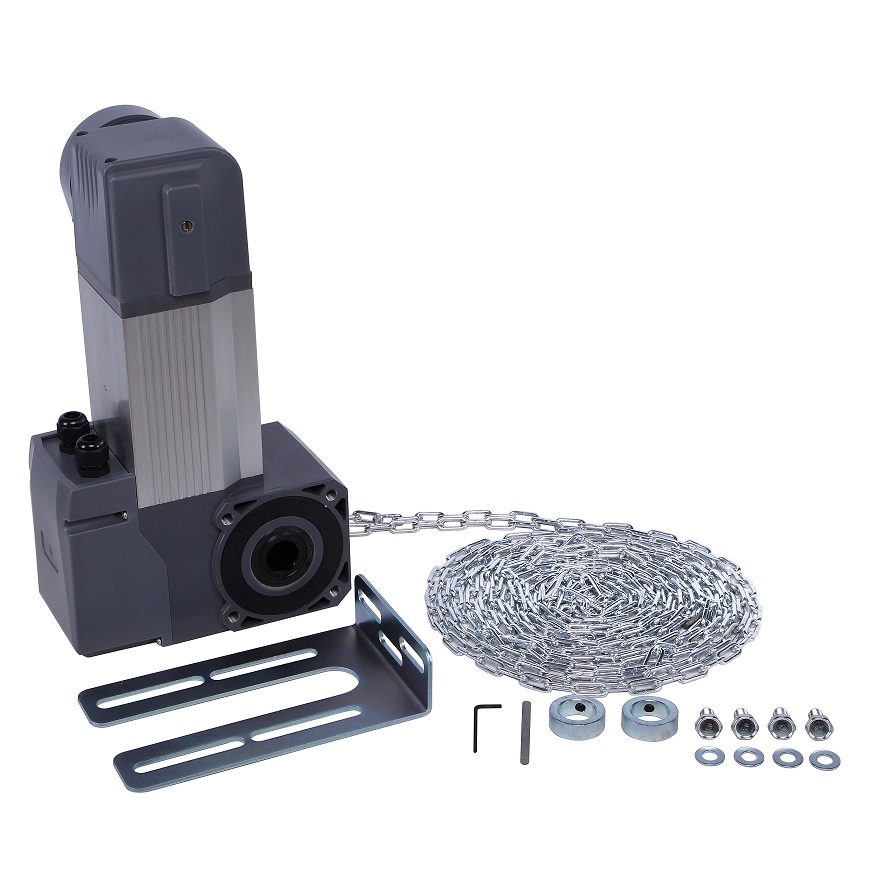

Hand chain manual release systems for emergency purpose.
Technical Specifications
|
Model |
GY40 |
GY60 |
GYS60 |
GY100 |
GYS150 |
|
Power supply |
230V/50Hz |
230V/50Hz |
380V |
230V/50Hz |
380V |
|
Rated power |
300W |
370W |
300W |
450W |
550W |
|
Protection grade |
IP54 |
|
Motor rotate speed |
1400r/min |
|
Max. output torque |
40N·m |
60N·m |
60N·m |
100N·m |
150N·m |
|
Max. limited journey |
20 circle |
|
Output shaft aperture |
Φ25.4 mm |
|
Limit switch |
Mechanical limit switch with micro adjusting device |
|
Length of manual chain |
8M |
|
Model of manual chain |
Universal chain |
|
Environment temperature |
-20°C~+70°C |
|
No-loading rotating speed |
23r/min |
|
Reduction ratio |
1:58 |
|
Work duty |
S2, 10min |
S2,10min |
S2,25min |
S2,10min |
S2,25min |
|
Thermal protection temperature |
120°C |
