Built in control unit with 433.92 MHz receiver
Built in LED courtesy light
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
Mechanical limit switch
Manual key release design for emergency purposes.

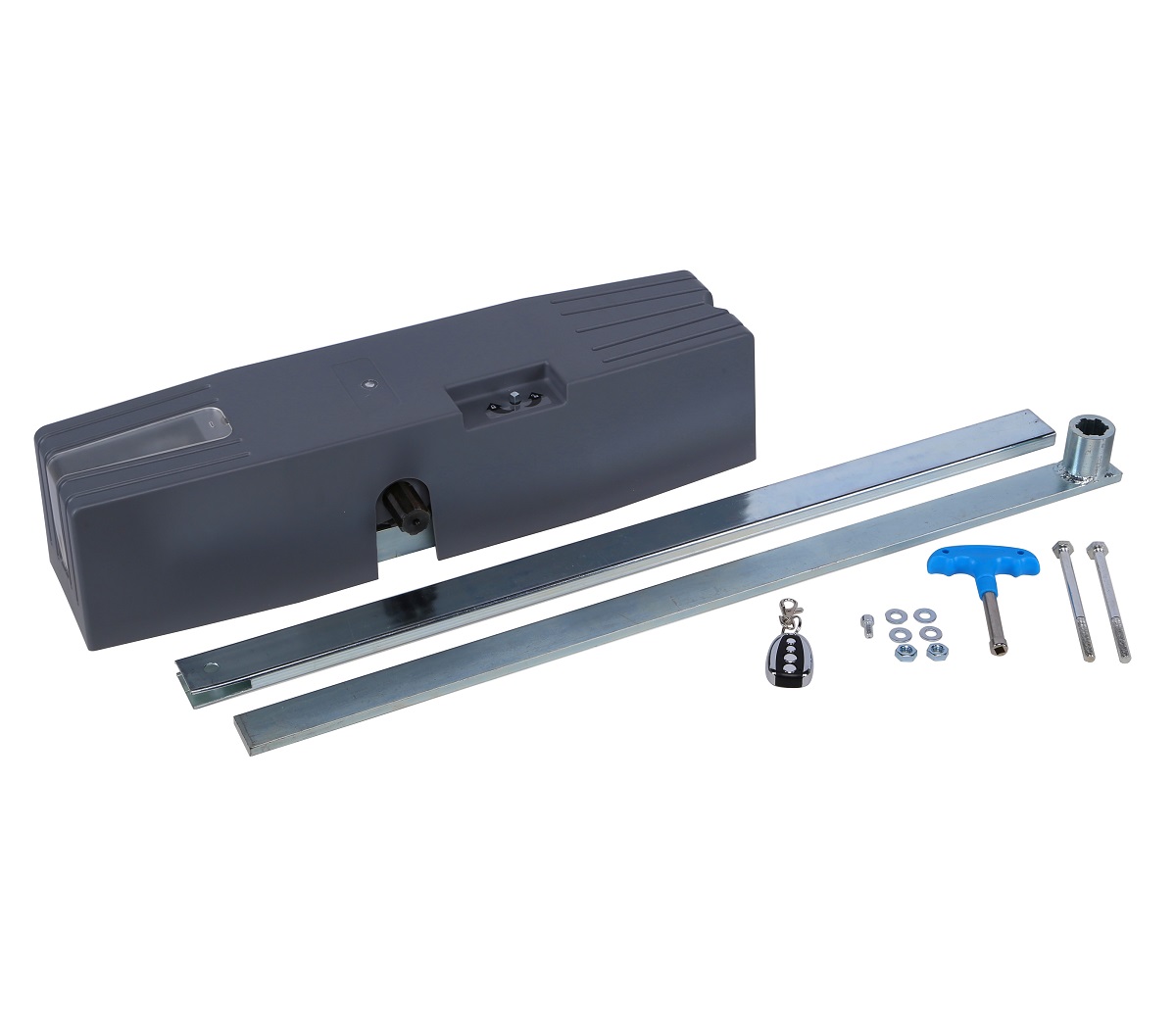

Installation accessories with pull rod and bush.
Available for two door openers mounted on each side for larger door.






Technical Specifications

Unit  Model	CK300AC
Power supply	220V/110V
Motor power	200W
Output torque	350N·m
Door max surface	9Sq.m.
Work duty	S2, 15min.
Limit switch	Mechanical limit switch
Gate move speed	20cm/sec
Remote control range	≥30 m
Extra remote control	25 (2 included)
Frequency	433.92mHz)
Noise	≤58dB
Working temperature	-20°C~+70°C
Weight	14 kg
