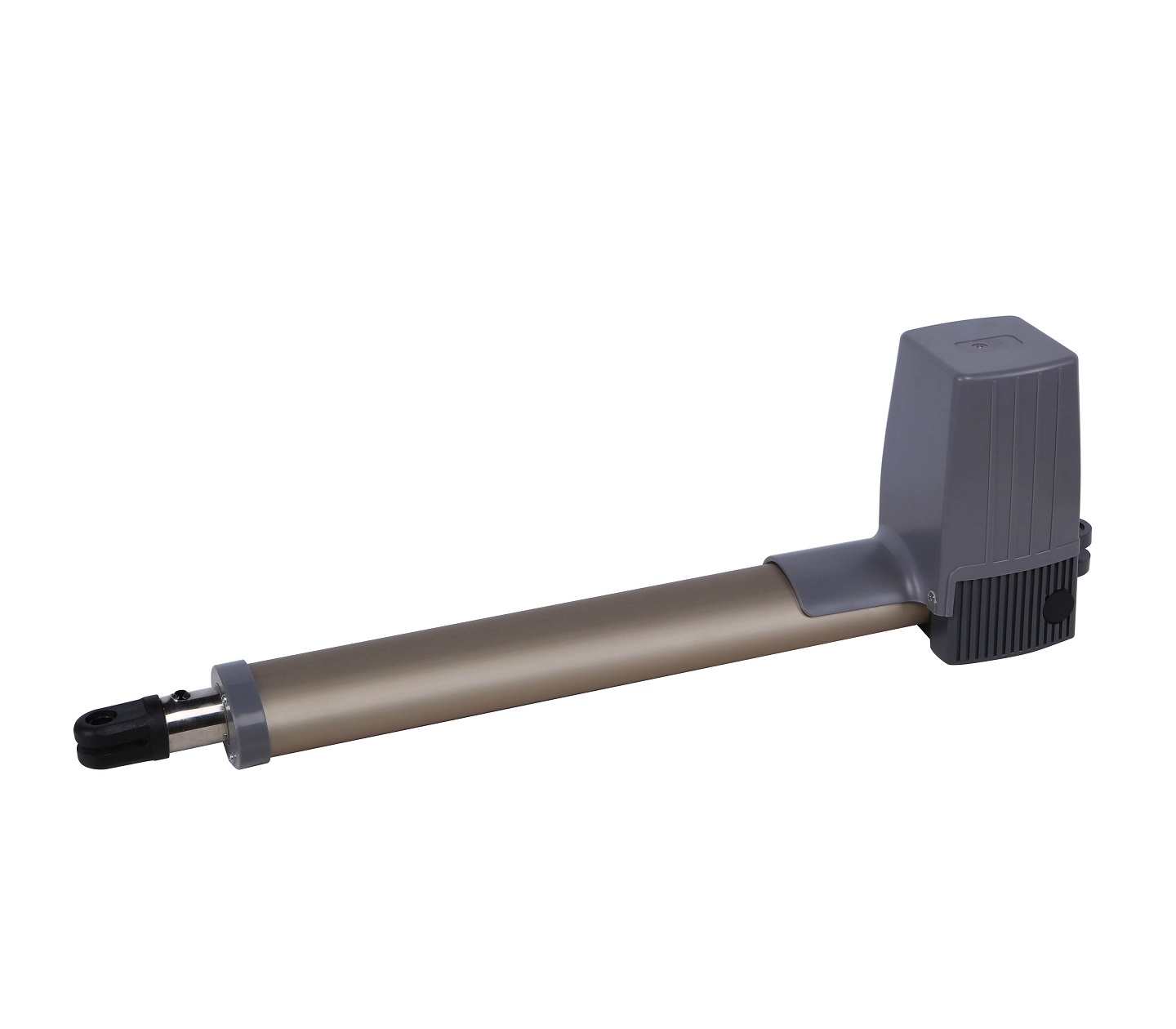

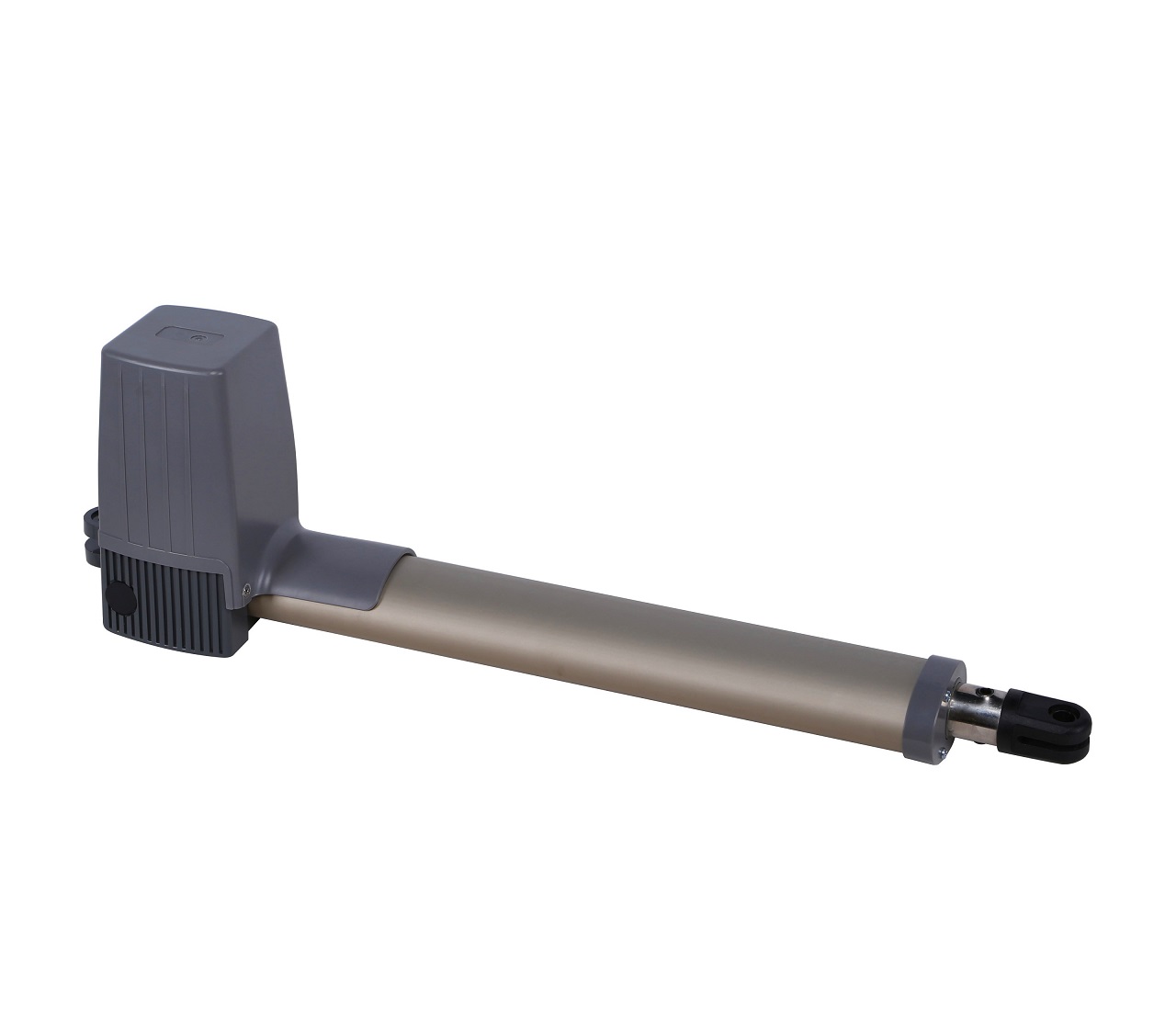

PK300DC

The PK300DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 300 Kg and width up to 2.5 meters.


DC motor, compact structure, smooth operation and low noise.Optional for Stroke length 29 cm and 49 cm.
Separately control box
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.


Technical Specifications
Model PK300DC
Power supply AC220V/110V
Motor power DC24V 140W
Driving method Screw driven piston type
Max stroke 29 / 49 cm
Max speed 1.5cm/sec
Operating cycle 20 second per 90 (approx.)
Max. gate weight 300 Kg/Leaf
Max. single-leaf length 2.5 M
Gearbox Worm gear
Work duty S2 30min
Remote control range ≥30 meters
Frequency 433.92mHz
Extra remote control 25 (2 included)
Environmental temperature: -20 to +70C
Weight 17 Kg
