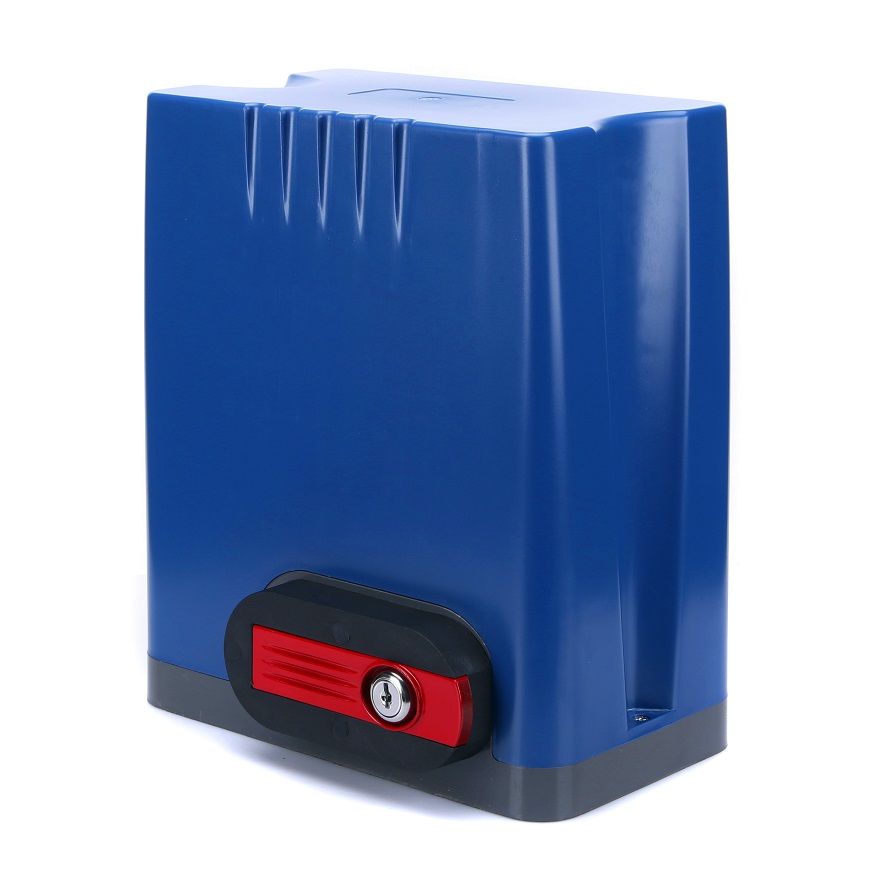

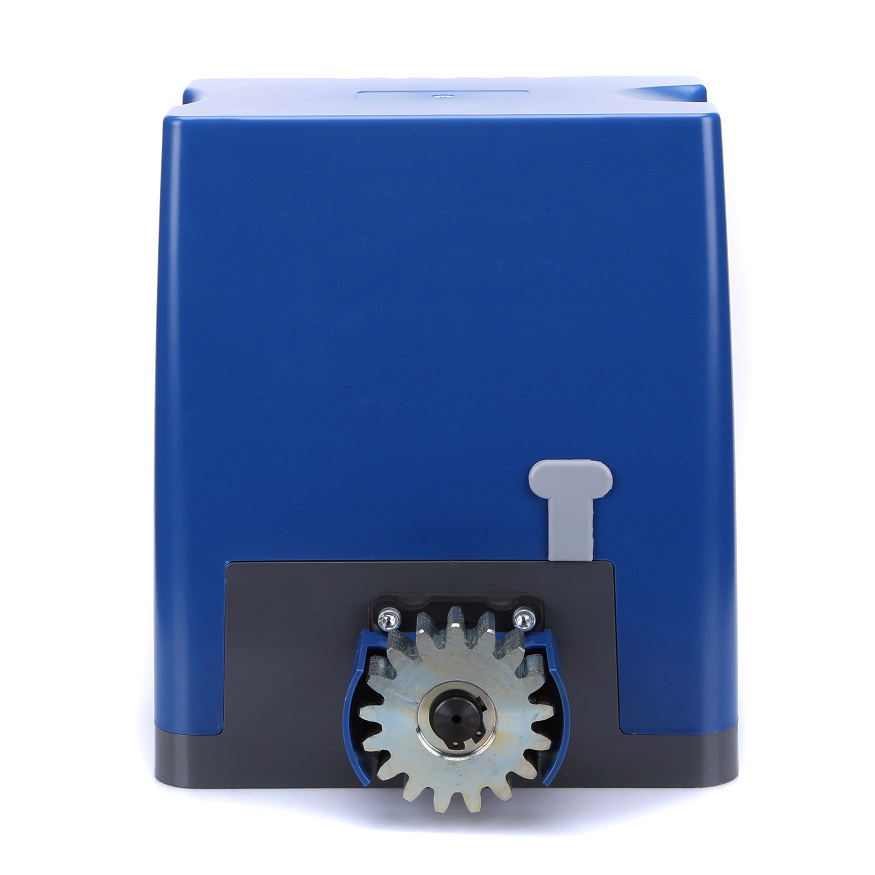

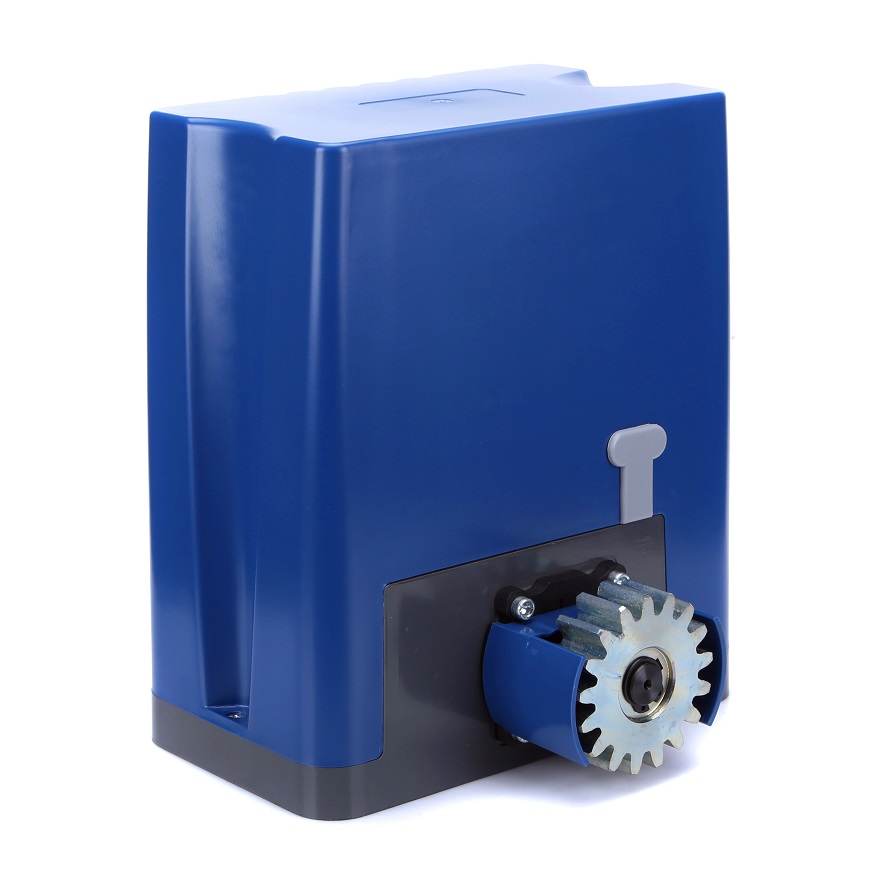

DKC500DC DKC800DC
The DKC500DC/DKC800DC gate opener designed for residential use, weight up to 500/800 Kg and operating distance up to 8 meters.
Compact structure, novel appearance, easy installation.Built-in control board, optional for backup battery and solar charger.
MCU is supplied to control the gate opener.
Keypad / single button interface.
Alarm lamp, Photo beam & safety beam interface.
User can select auto-close function.
Magnetic limit switch, soft start & slow stop function.
Manual key release design for emergency purposes.
Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.
Solar System compatible
Technical Specifications
Model |
DKC500DC |
DKC800DC |
Power supply |
240V/50Hz; 110V/60Hz |
240V/50Hz; 110V/60Hz |
Maximum gate weight |
500Kg |
800Kg |
Motor power |
24VDC 120W |
24VDC 200W |
Output torque |
10N·m |
18N·m |
Limit switch |
Magnetic limit switch |
Gate moving speed |
13m/min |
Remote control range |
≥30meters |
Remote control model |
Single button |
Extra remote control |
25 (2 included) |
Frequency |
433.92MHZ |
Work duty |
S2 30min |
Noise |
≤60dB |
Working temperature |
-20ºC ~ +50ºC |
Backup battery |
---- |
